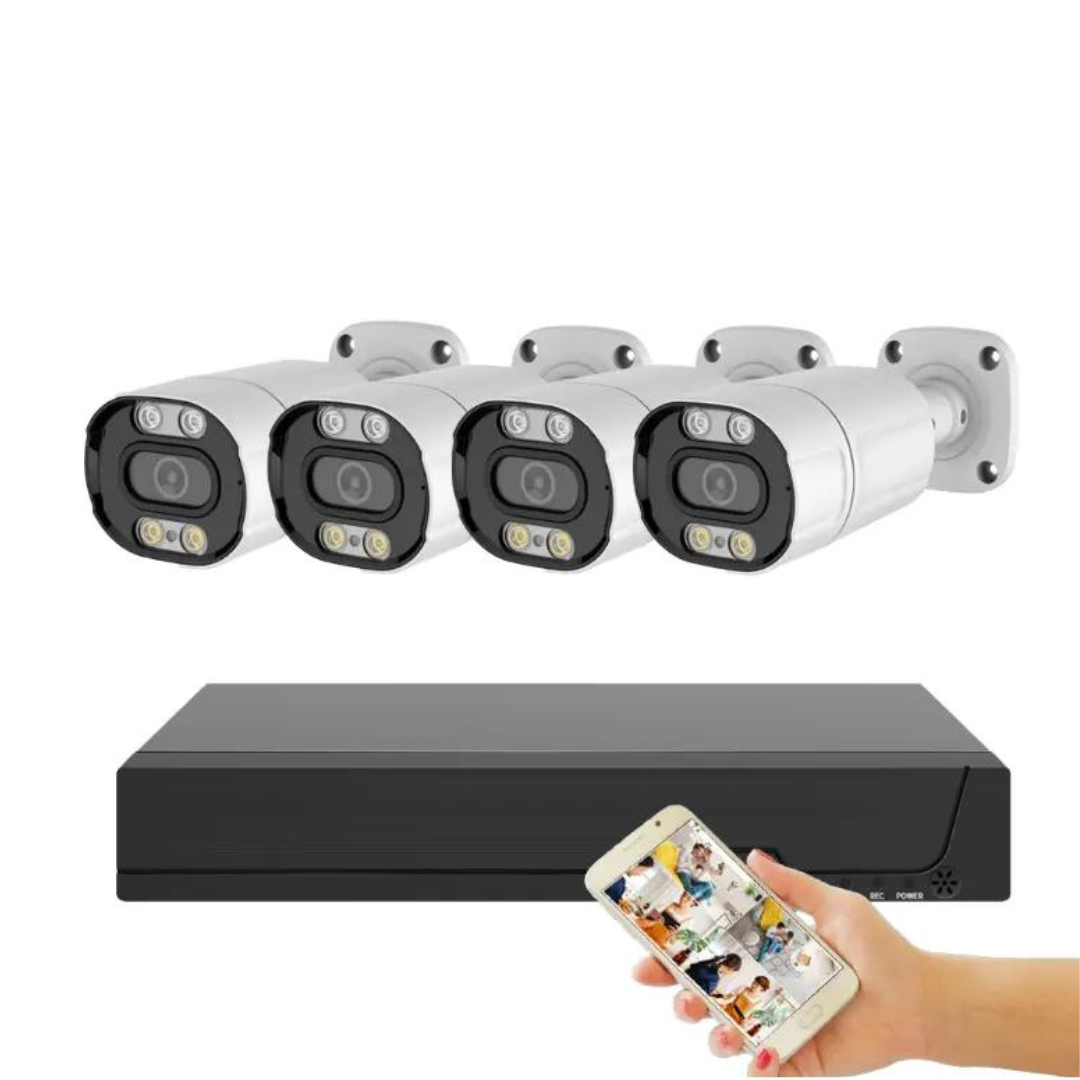

Sistem de supraveghere profesional 4K POE NVR CCTV. 4 canale (2x4MP. 2x8MP) 4K HD . recunoastere faciala. comunicare bidirectionala
Specificatii tehnice NVR:
Model: TM-KP14(NVR)
Transmisie: 300m
Procesor: XM8536D
OS: Linux
Multi-channel recording/playback
VIDEO
Video acces: 4 canale 4K
Compresie: H.365AI/H265+
Dimensiune video: 1920*1080
Calitate playback: 4K/5M/4M/3M/1080P
Recunoastere faciala( FACE DETECTION): DA
Decodare: 4CH/8CH in acelasi timp
1CH4K/2CH5M/1CH4M/2CH3M/3CH1080P
INREGISTRARE&PLAYBACK
Mode video: MANUAL>ALARM>MOTION DETECTION>TIMING
Playback: 1CH4K/1CH5M/1CH4M/2CH3M/3CH1080P
Filtre cautare: Timp. Calendar. Eveniment. Canal
Stocare: Hard disk (NEINCLUS)
Porturi: VGA*1. HDMI*1. AUDIO IN*1. AUDIO OUT*1. INTERNET PORT*1.USB*2.SATA*1
Temperatura functionare: 0-55 grade
Umiditate functionare: 10%-90%
Specificatii tehnice camere:
Structura sistem:
4 MP Embedded RTOS.dual-core 32bit DSP(GK7205V210)
8 MP Embedded RTOS.dual-core 32bit DSP(NT98566)
Senzor imagine:
4MP 4.0M 1/2.8SC5239S Low illumination CMOS sensor.
8MP 8.0M 1/2.7SC8239 Black light illumination CMOS sensor.
Lentile:
HD 4.0MP 3.6MM
HD 8.0MP 3.6MMMin.
Iluminare:
4MP: color 0.01Lux@F1.2. black/white 0.001Lux@F1.2
8MP: color 0.0001Lux@F1.2. black/white 0.0001Lux@F1.2
Reductie zgomot: Support 2D/3D
Leduri: 4 BUCATI IR LED+4 BUCATI LED Max.IR
Distanta: 20-30m
Moduri: Full Color/Smart/Infrared Night Vision
Compresie video: H.265 +(Compatible with H.265/H.264) suporta dual stream.AVI;0.1M~8Mpbs variable;1~30f/s variable
Frame:
Main stream: 4 MP 2560*1440@18fps. 2304*1296@20fps.1920*1080@25fps; sub-stream: 800*448@25fps
Main stream: 8MP 3840*2160@15fps；5MP 2880*1616@25fps；4MP 2560*1440@25fps；2MP 1920*1080@25fps; Sub-stream: 800*448@25fps;
Interfata retea: 1*RJ45 10/100M adaptativ Ethernet port; suporta RTSP/FTPDHCP/NTP/UPnP etc
Monitorizare telefon: Aplicatie XMEYE(iOS .Android)Audio:
Comunicare bidirectionala
